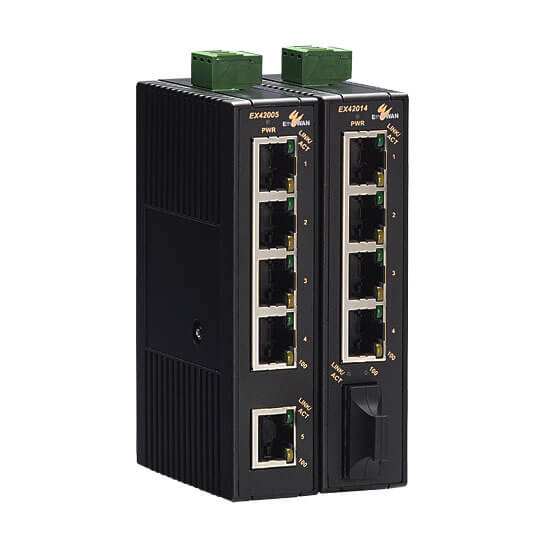

EX42000

ISO
• Manufactured in an ISO9001 facility

Safety
UL 60950

EMI
FCC Part 15B, Class A
VCCI Class A
EN 61000-3-2
EN 61000-3-3
EN 61000-6-4

EMS
EN 61000-6-2
• EN 61000-4-2 (ESD Standards)
• EN 61000-4-3 (Radiated RFI Standards)
• EN 61000-4-4 (Burst Standards)
• EN 61000-4-5 (Surge Standards)
• EN 61000-4-6 (Induced RFI Standards)
• EN 61000-4-8 (Magnetic Field Standards)

Environmental Test Compliances
IEC 60068-2-6 Fc (Vibration)
IEC 60068-2-27 Ea (Shock)
FED STD 101C Method 5007.1 (Free fall w/ package)

Operating Temperature
• -10°C to 60°C (14°F to 140°F)
Tested @ -20°C to 70°C (-4°F to 158°F)

Storage Temperature
• -40°C to 85°C (-40°F to 185°F)

Ambient Relative Humidity
• 5% to 95% (non-condensing)

Input Voltage
• Terminal block: 12 to 48VDC

Power Consumption
• 2.12W Max. 0.17A @ 12VDC, 0.08A @ 24VDC, 0.04A @ 48VDC

Protection
• Reverse polarity proetction
• Overload current protection
