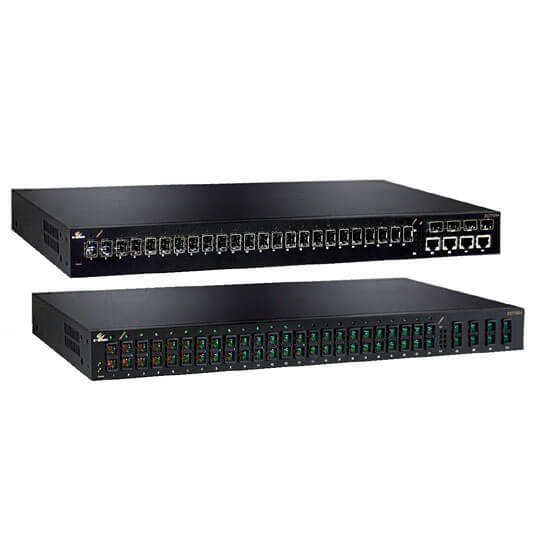

EX77000

Managed Hardened 24-port 10/100BASE and 4-port Gigabit Ethernet Switch with SFP options

•  Certified by NEMA TS2 Environmental requirements for traffic control equipment

•  Supports α-ring and RSTP/MSTP/STP for Ethernet redundancy

• IP Multicast Filtering through IGMP Snooping V1, V2 & V3

• Supports port-based VLAN and IEEE802.1Q VLAN Tagging and GVRP

• IEEE802.1p QoS with four priority queues

• MAC-based trunking and LACP

• IEEE802.1x Security

• Bandwidth Rate Control

• Per-port programmable MAC address locking

• Up to 24 Static Secure MAC addresses per port

•  Port mirroring

• NTP synchronization

• DHCP Client/Server

• RS-232 console, Telnet, SNMP V1, V2c & V3, RMON, Web Browser, and TFTP Management

• 1000Mbps-Full-duplex, 10/100Mbps-Full/Half-duplex, Auto-negotiation, Auto-MDI/MDIX

• Full wire-speed forwarding rate
