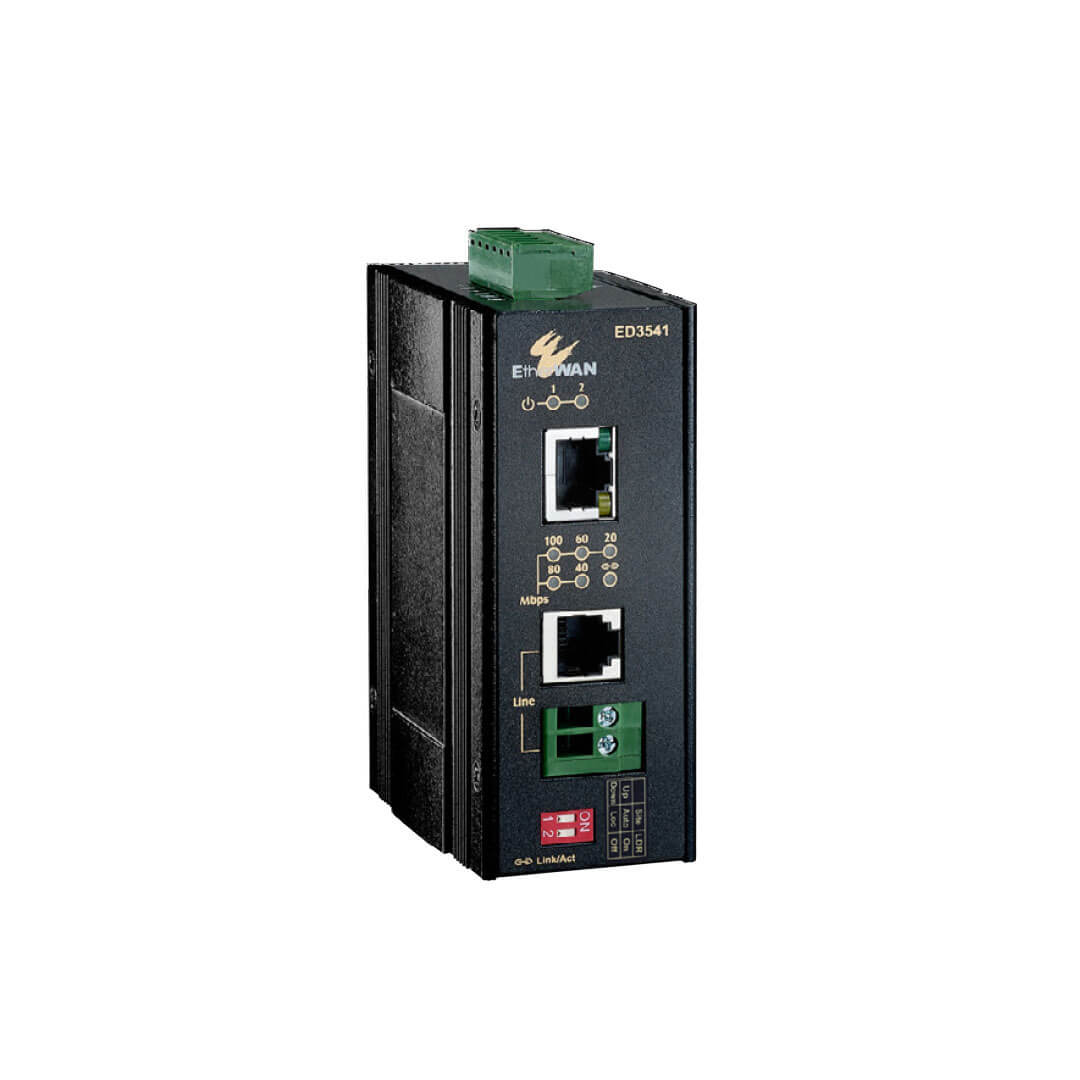

ED3541

Hardened 10/100BASE-TX Ethernet Extender​

Call for price
ED3541

Hardened 10/100BASE-TX Ethernet Extender

Power over link

ISO
• Manufactured in an ISO9001 facility


Safety
UL60950-1, EN60950-1, IEC60950-1

EMI
FCC Part 15B, Class A
VCCI, Class A
EN61000-6-4

EMS
EN61000-6-2
• EN61000-4-2 (ESD Standards)
• EN61000-4-3 (Radiated RFI Standards)
• EN61000-4-4 (Burst Standards)
• EN61000-4-5 (Surge Standards)
• EN61000-4-6 (Induced RFI Standards)
• EN61000-4-8 (Magnetic Field Standards)

IEC60068-2-6 Fc (Vibration Resistance)
IEC60068-2-27 Ea (Shock)
FED STD 101C Method 5007.1 (Free fall w/ package)

Operating Temperature
• -40°C to 75°C (-40°F to 167°F)
Tested @ -40°C to 85°C (-40°F to 185°F)


Storage Temperature
• -40°C to 85°C (-40°F to 185°F)


Ambient Relative Humidity
• 5% to 95% (non-condensing)

Input Voltage
• 12 to 48VDC (Terminal Block)

Power Consumption
• 4.56W max. 0.38A @ 12VDC
0.07A @ 48VDC

Protection
• Over current protection
• Reverse polarity protection


  • 557.94KB
  • PDF
