ED3638

Hardened 10/100BASE-TX PoL™/PoE Ethernet Extender over Coaxial Cable​

Call for price
ED3638

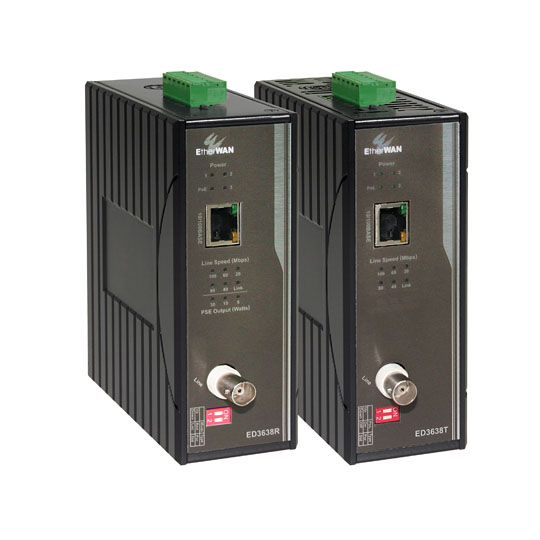

Hardened 10/100BASE-TX PoL™/PoE Ethernet Extender over Coaxial Cable

Power over link

ISO
• Manufactured in an ISO9001 facility

Safety
UL60950-1
IEC60950-1

EMI
FCC Part 15B, Class A
EN61000-6-4
EN55022
EN61000-3-2
EN61000-3-3

EMS
EN61000-6-2
• EN61000-4-2 (ESD Standards)
• EN61000-4-3 (Radiated RFI Standards)
• EN61000-4-4 (Burst Standards)
• EN61000-4-5 (Surge Standards)
• EN61000-4-6 (Induced RFI Standards)
• EN61000-4-8 (Magnetic Field Standards)

Environmental Test Compliance
IEC60068-2-6 Fc (Vibration Resistance)
IEC60068-2-27 Ea (Shock)
IEC60068-2-32 Ed (Free Fall)

Input
• Terminal Block: 46 - 57VDC
• DC JACK: 48VDC
• 2.5A @ 48VDC (Peak current 3.26A)

Power Consumption
• Max. 65W with Power over Link (PoL) function enabled
• ED3638T: Max. 5W (without PoL / PoE)
• ED3638R: Max. 5W (without PoL / PoE)Max. 35W (with PoE only)

Protection
• Over current protection
• Reverse polarity protection


  • 2.02MB
  • PDF
