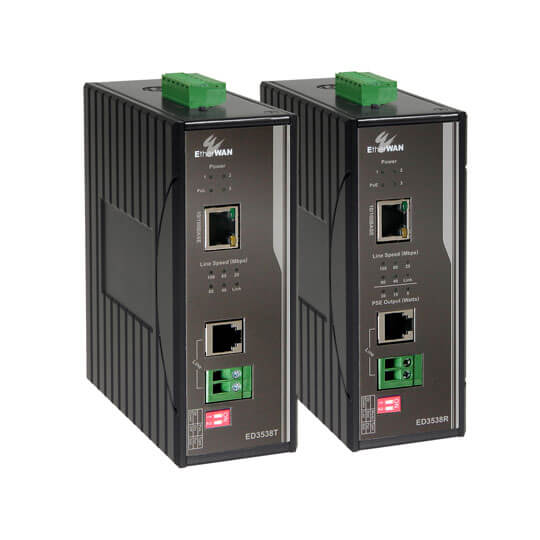

ED3538

ISO
• Manufactured in an ISO9001 facility

Safety
UL60950-1, IEC60950-1

EMI
FCC Part 15B, Class A
EN61000-6-4, EN55022, EN61000-3-2 and EN61000-3-3

EMS
EN61000-6-2
• EN61000-4-2 (ESD Standards)
• EN61000-4-3 (Radiated RFI Standards)
• EN61000-4-4 (Burst Standards)
• EN61000-4-5 (Surge Standards)
• EN61000-4-6 (Induced RFI Standards)
• EN61000-4-8 (Magnetic Field Standards)

Environmental Test Compliance
IEC60068-2-6 Fc (Vibration), IEC60068-2-27 Ea (Shock),
IEC60068-2-32 Ed (Free fall w/ package)

Operating Temperature
• -40°C to 75°C (-40°F to 167°F)
Tested @ -40°C to 85°C (-40°F to 185°F)

Storage Temperature
• -40°C to 85°C (-40°F to 185°F)

Ambient Relative Humidity
• 5% to 95% (non-condensing)

Input
• Terminal Block: 46 - 57VDC
• DC JACK: 48VDC
• 2.5A @ 48VDC (Peak current 3.26A)

Power Consumption
• Max. 65W with Power over Link™ (PoL) function enabled
• ED3538T: Max. 5W (without PoL / PoE)
• ED3538R: Max. 5W (without PoL / PoE)
Max. 35W (with PoE only)

Protection
• Overload current protection
• Reverse polarity protection
