EX29000

Loading

EX29000

Call for price
EX29000

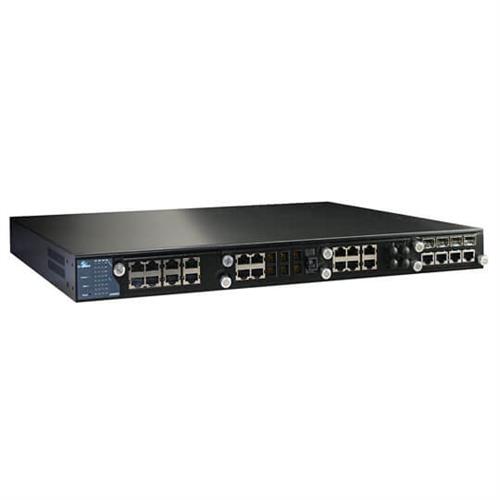

IEC61850-3/IEEE1613 Modularized Managed 24-port 10/100BASE and 4-port Gigabit Ethernet Switch with SFP options

Power over link

ISO
• Manufactured in an ISO9001 facility

EMI
FCC Part 15B, Class A
EN61000-6-4
EN55022
EN61000-3-2
EN61000-3-3

EMS
EN61000-6-2
• EN61000-4-2 (ESD Standards)
• EN61000-4-3 (RFI Standards)
• EN61000-4-4 (Burst Standards)
• EN61000-4-5 (Surge Standards)
• EN61000-4-6 (Induced RFI Standards)
• EN61000-4-8 (Magnetic Field Standards)
• IEC61000-4-10 (Oscillatory wave magnetic field test)
• IEC61000-4-16 (Power frequency immunity test)
• IEC61000-4-18 (Oscillatory wave immunity test)

IEC60068-2-6 Fc (Vibration Resistance)
IEC60068-2-27 Ea (Shock)

Industrial Compliance
IEC61850-3 / IEEE1613

Operating Temperature
• -10°C to 60°C (14°F to 140°F)
Tested @ -20°C to 70°C (-4°F to 158°F)

Storage Temperature
• -40°C to 85°C (-40°F to 185°F)

Ambient Relative Humidity
• 5% to 95% (non-condensing)

Input
• (T) : + / - 48VDC (36 - 75VDC) Internal Universal PSU
• (W) : 88 - 370VDC and 90 - 264VAC Internal Universal PSU
• (C) : 90 - 264VAC, 50 - 60Hz Internal Universal PSU

Power Consumption
• 42.7W Max.


  • 744.89KB
  • PDF
