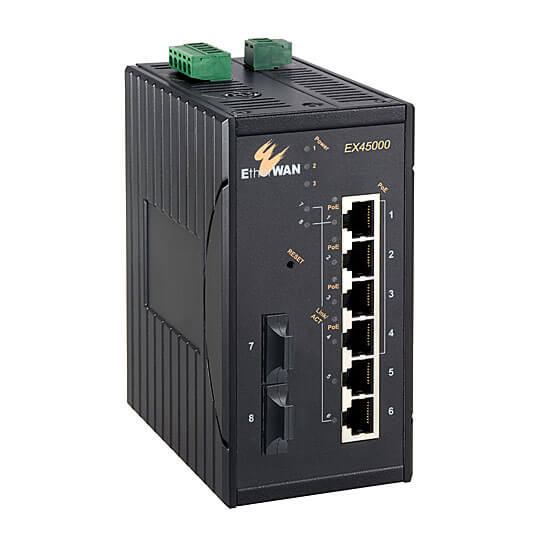

EX45000

Input
• Redundant power inputs:
Terminal Block: 47 - 55VDC
DC Jack: 47 - 55VDC

Power Consumption
• Device: Max. 10W (without PoE)
• PoE power budget (depends on power input): 61.6W Max.

PoE Power Output
• Port 1 to 4
• IEEE802.3af: up to 15.4W/port, 47 - 55VDC, 350mA Max.

Protection
• Reverse polarity protection

ISO
• Manufactured in an ISO9001 facility

EMI
FCC Part 15B, Class A
VCCI Class A
EN 61000-3-2
EN 61000-3-3
EN 61000-6-4
EN 55022 Class A

EMS
EN 61000-6-2
• EN 61000-4-2 (ESD Standards)
• EN 61000-4-3 (Radiated RFI Standards)
• EN 61000-4-4 (Burst Standards)
• EN 61000-4-5 (Surge Standards)
• EN 61000-4-6 (Induced RFI Standards)
• EN 61000-4-8 (Magnetic Field Standards)
EN 55024

IEC 60068-2-6 Fc (Vibration)
IEC 60068-2-27 Ea (Shock)
FED STD 101C Method 5007.1 (Free fall w/ package)

Industrial Compliances
NEMA TS2

Operating Temperature
• -40°C to 75°C (-40°F to 167°F)
Tested @ -40°C to 85°C (-40°F to 185°F)

Storage Temperature
• -40°C to 85°C (-40°F to 185°F)

Ambient Relative Humidity
• 5% to 95% (non-condensing)
